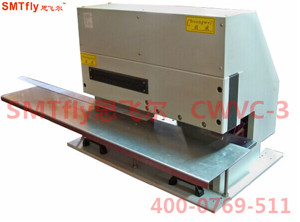

LED pcb separator,CWVC-3
DOWNLOAD
LED pcb separator,CWVC-3 Feature:
1.Cut any length metal board more safety and easily.
2.Separates long boards directly,without turn direction .
3.Separates boards up to 2.0mm thick Metal Board
4.Shears boards safely with parts as close as 1 mm to the score line,including ceramic capacitors
5.Operator foolproof! Panels cannot be inserted into the knives except on the score line
6.Handles high components up to50mm
7.Bow waves that can occur with round knives are avoided
8.Easy adjusting of distance between knives
LED pcb separator,CWVC-3 Specification:
Model: CWVC-3
The Longest Minimize: unlimted
Size: 780mmx500mmx620mm
Minimize thickness: 0.3-3.5mm
Machine Net Weight(No table): 185 KG
The operating air pressure: 0.6Mpa ~0.8Mpa.
Voltage: 220V or 110V
LED pcb separator,CWVC-3 Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 12 years experience
# Free sharpening for blades within 3 months
