PCB Board Laser Cutting Machine with 10W Laser Imported from USA,SMTfly-6

Product description: PCB board laser cutting machine with 10W laser imported from USA , SMTfly-6
INQUIRY

PCB board laser cutting machine with 10W laser imported from USA , SMTfly-6 Features:

More quick and easy, shorten the delivery time;
High quality 、no distortion、surface clean& uniformity;

Gathering the CNC tech、laser tech、software tech…High accuracy、High speed

PCB board laser cutting machine with 10W laser imported from USA , SMTfly-6 Description:
Neat and smooth edge, no burr or overflow
Wide application range, including FPC exterior cutting, profile cutting, drilling, opening window for covering, etc.
Laser wavelength: 355nm
Rated power: 10W/12W/15W/18W@30KHz
Galvanometer working field Per One Process: 40 × 40mm
Power consumption for the hole machine: 2KW

PCB board laser cutting machine with 10W laser imported from USA , SMTfly-6 Cutting Application:

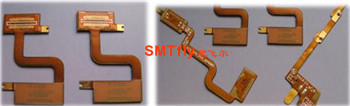

FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;

PCB board laser cutting machine with 10W laser imported from USA , SMTfly-6 Specification:

Laser:	Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength:	355nm
Laser Power:	10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor:	±2μm
Repetition Precision of Worktable of Linear Motor:	±1μm
Effective Working Field:	300mmX300mm
Laser Scanning Speed:	2500mm/s (max)
Galvanometer Working Field Per One Process:	40mmх40mm
