Multi-blade PCB Cutting Equipment,SMTfly-5

Product description: multi-blade pcb cutting equipment
INQUIRY

Specification:

Max cutting length:	No limit
Min cutting length:	100mm
Max cutting width:	160mm
Custom cutting width:	300mm
Min PCB width:	8mm
PCB thickness:	0.8-3.5mm
Feeding speed:	0-500mm/s
Working tem.:	10-35℃
Blade material(auto-lock function):	Imported high precision steel
Storge tem.:	-20-50℃
Voltage:	110-220V
Dimension:	21605701050mm
Packaging weight:	424kgs

Features:

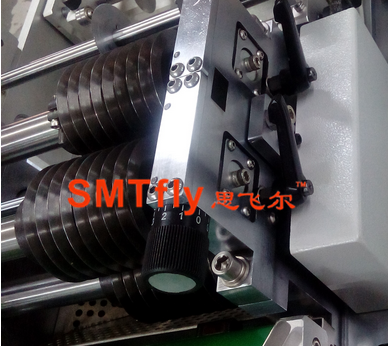

1.It can cut many boards with multiple sets of knives work at the same time.
2.The knife flywheel is adjustable as a whole from 0 to 5mm
3.The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm
4.The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life.
5.It is convenient to adjust the cutting speed through rotary knob
6. No limits of the cutting length.
7.Thickness range of PCB: 0.8-3.5mm

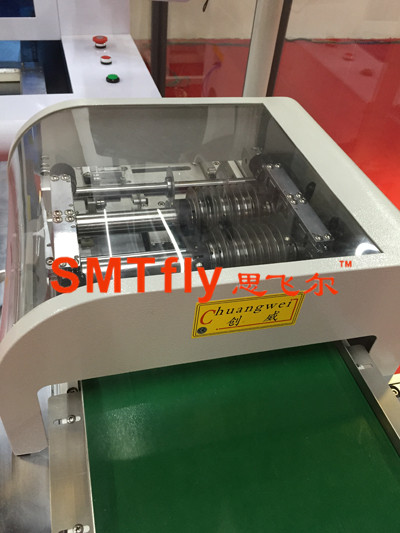

8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.
9.The machine adopts multiple blade to separate boards with simple operation and high efficiency.

10. It can connect the production line to separate the PCB, fitted for batch production.
