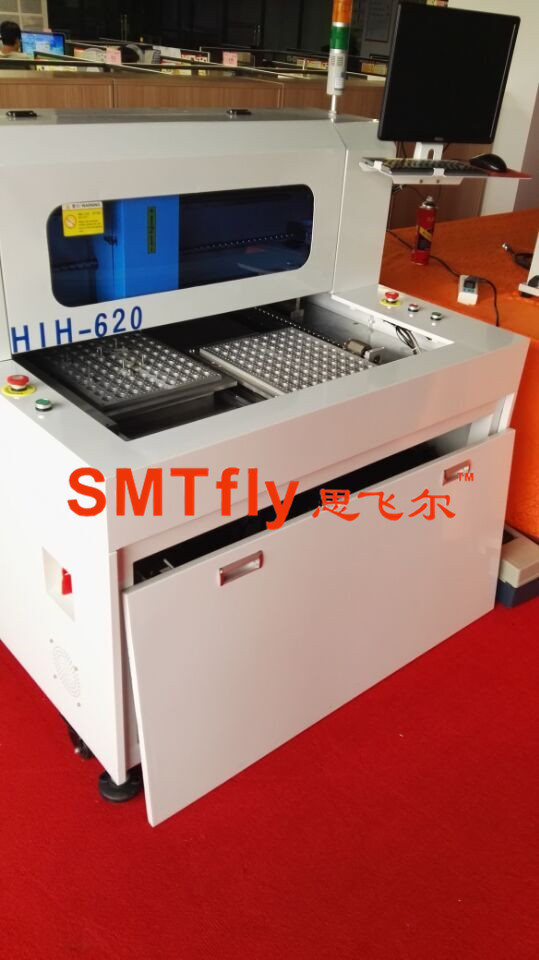

Auto Routing PCB,SMTfly-F01

Product description: auto routing pcb
INQUIRY

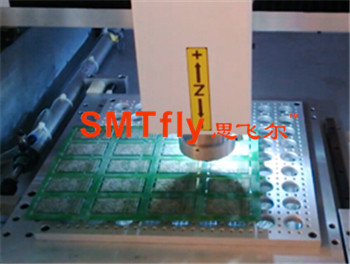

Depaneling with a PCB Router

Benefits of PCB Depaneling

There is no better way to depanel a printed circuit board than with the Sayaka PCB Router. This PCB depaneler is the answer for hassle-free PCB depaneling through the employment of a router bit that minimizes stress on components. The high speed spindle included in the machine speeds up cutting and maintains precision, while also allowing for flexible panel designs with various cutting patterns. Our PCB depaneler will also cut down on bit replacement with our router bit depth adjustment system, which automatically shifts up to 5 depth levels. The PCB router bit maximum cutting speed is 50mm per second, while the traveling speed is a maximum of 800mm per second. With a built-in fixture based dust vacuum system, the system is sure to be clean and efficient. This prevents warping, and takes full advantage of vacuum strength for the most effectual dust collection.

Easy Operation

Easy to operate, the image processing software of the PCB router makes it simple to program cutting paths with point-and-click technology, whereas it also automatically compensates for alignment with a CCD camera. With the simple touch of an external button PCB depaneling can be started promptly for easy operation, and through the easy to use pre-programming mode, the operation of the machinery is made even more undemanding. The PCB depaneler is also very low maintenance, as the machine is designed for easy access and repairs. Frame structure and the spindle motor operate on an X, Y and Z axis, while ceramic bearing is integrated to provide 60,000rpm for spins.

Cost Effective

With the variety of benefits that our depaneling systems offer, and the ease in which the machinery can be operated, the price is undeniably practical. Not only are depaneling needs taken care of with efficiency and simplicity, but the low cost will save money and time.

Specifications:

Dimensions(WDH):	1220mm1450mm1420mm
Weight:	550KG
Height offset:	60~110mm
Motor type:	JiaBao series
Positioning repeatability:	0.001mm
Axis working area(max):	680mm360mm50mm
PCB fixation:	standard、specialization
PCB loading/unloading:	manual
PCB size (max):	322mm*322mm
PCB thick (max):	5mm
Rigidity fixturing:	standard
Fixturing fixation:	machinery
Power:	400W
Spindle:	50000rpm/min
Protect:	self/wind cooling
Change cutter:	Specialization
