  • PCB Router Machine with Milling Joints,SMTfly-D3A
PCB Router Machine with Milling Joints,SMTfly-D3A

PCB Router Machine with Milling Joints,SMTfly-D3A

  • Product description: PCB Router Machine with Milling Joints,SMTfly-D3A
  • INQUIRY

PCB Router Machine with Milling Joints,SMTfly-D3A Features:

1.Desktop single bench cutting machine, Speeds of up to 100mm/s, positioning speed 500mm/s cnc router
2.Cut continuously without interruption during loading and unloading
3.High quality shaft system allows the system to quickly ramp, reduce the period of time, Improve productivity, maintaining high    precision cnc router machine cnc router machine cnc router machine cnc router machine
4.Use high-quality hardware to ensure high rigidity and high performance All screws are protected from dust and dirt from entering    to improve the life and performance of the shaft
5.Use high-quality hardware to ensure high rigidity and high performance

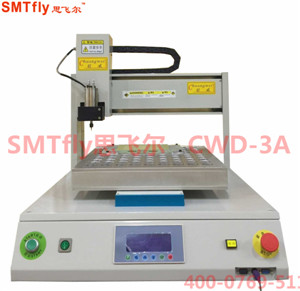

PCB separator,CWD-3A PCB separator,CWD-3A
PCB Router Machine with Milling Joints,SMTfly-D3A Specifications:
Motor drive system:                                              Servo / stepper motor
Spindle speed:                                                      50000r/s
Cutting performance:                                            500mm/s
Drive system repeatability:                                    ±0.02mm
Cutting speed:                                                       Max 100mm/S(depends on PCB material and cutting quality)
Resolution:                                                            ±0.01mm
Configuration:                                                        X、Y、Z 3 axis
Repeatability:                                                        <0.1mm
PCB positioning:                                                   fixture
Load and unload way:                                           Manually
PCB thickness:                                                      0.4mm-4mm
Working area:                                                        400*400mm(could be customized made)
Spindle motor power:                                            0.5KW
Spindle motor speed:                                            50000r/m
Spindle motor cooling:                                           Air-cooled
Machine dimension:                                              650*550*615mm
Weight:                                                                  73KG
Security settings:                                                   emergency stop switch

Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 15 years experience
# Free sharpening for blades within 3 months
