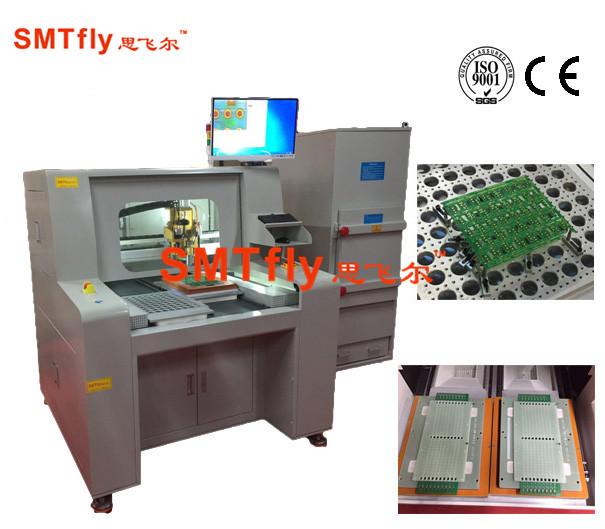

CNC PCB Router Separator For Wire and Connector Industry

It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.

Specification

Model CW-F01-S
Standard working area 320*320mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 320*320mm(standard)
Panel Thickness 0.5-3.5mm
Spindle motor KAVO Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm


Features:

1. Manual loading/unloading processing

2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value.

3. Friendly touch panel with 10X CCD camera to minimize the time of programming

4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy

5. Auto router bit check to prevent the bit break incomplete cutting.
