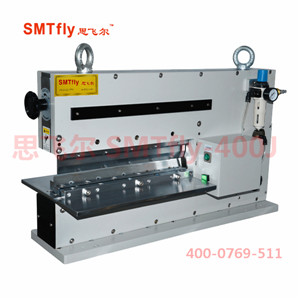

PCBA Depanel, SMTfly-400J
PCBA Depanel, SMTfly-400J Feature:
●Separates boards up to 3.5mm thick
●Shears boards safely with parts as close as 0.5mm to the
score line,including ceramic capacitors
●Operator foolproof! Panels cannot be inserted into the
knives except on the score line
●Pneumatically driven
●Handles high components up to 70mm
●Bow waves that can occur with round knives are avoided
●Easy adjusting of distance between knives
●Independent lab tests show less than 200 microstrains of

stress measuring compression and tension.



PCBA Depanel, SMTfly-400J Specification:

Max Cutting Length 400mm
PCB Thickness 0.6-3.5mm
PCB Material FR1, FR4, CEM1, CEM3, MCPCB
Machine Size 960×425×350mm
Machine Weight 185kgs
Driven Mode Air

Watch PCBA Depanel Video
