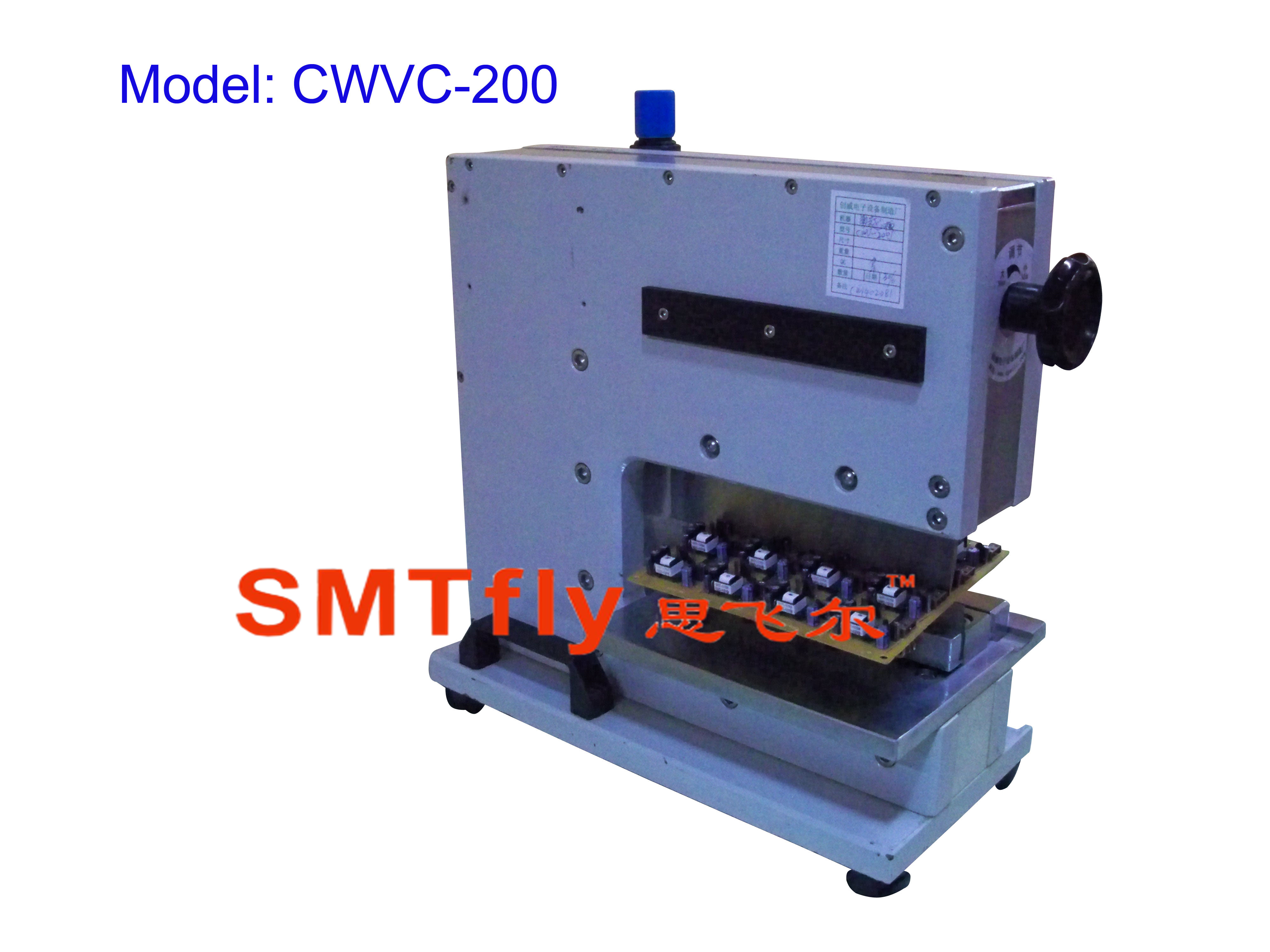

Semi-automatic Aluminium PCB Separator,SMTfly-200J

Product description: semi-automatic aluminium pcb separator
INQUIRY

Specification :

Model:	CWVC-200J
Cutting Length:	200mm
Size:	450200460mm
Minimize thickness:	0.3-3.5mm
Machine Weight:	90Kg

Features:

1 . Separates boards up to 2.0 mm thick ( with minimum 0.5 mm scoring depth )

2 . Can be used with aluminum , FR4 , CEM3 and other substrates , including substrates with metal inner layers
3 . Separates PCBs with components located up to 0.5 mm from the score line
4 . Safe for use with flexible and thin PCBs
5 . Smooth , quiet pneumatic-powered unit with foot-pedal activation

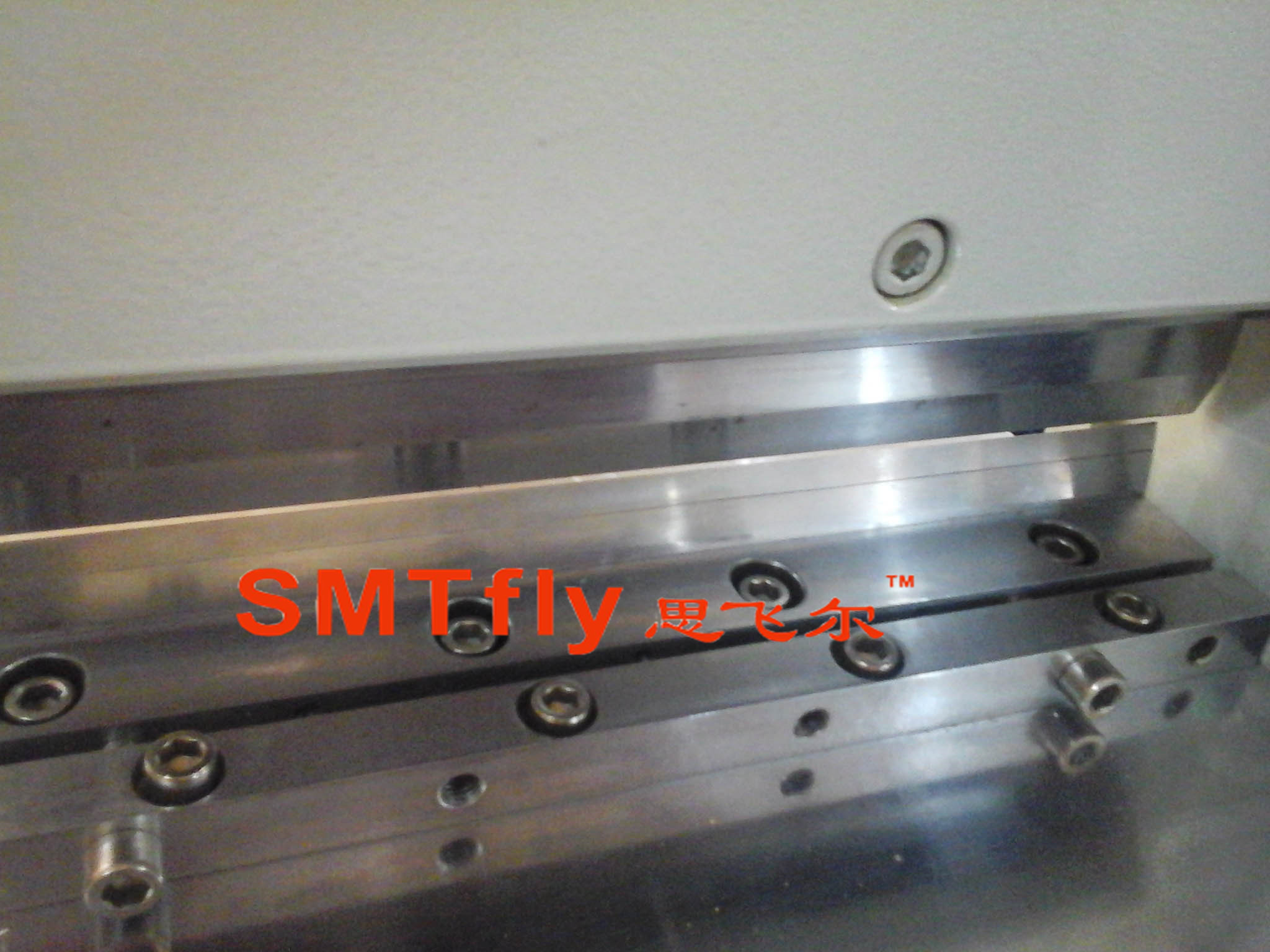

6 . Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion
7 . Boards are separated without bending or breaking
8 . No safety risks to operator since there is never a gap greater than 4 mm between the upper and lower blades
9 . Adjust blades to PCB score line using rotary knob
