Home > PCB separator
|

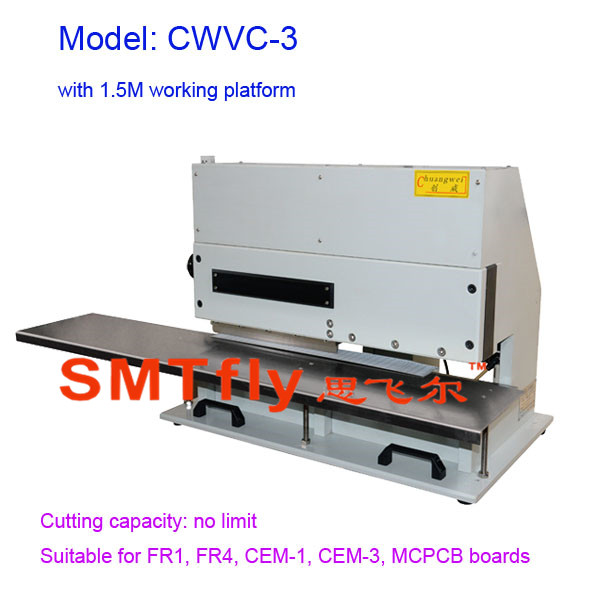

Model: |
CWVC-3 |
|
The Longest Minimize: |
unlimted |
|
Size: |
780mmx500mmx620mm |
|
Minimize thickness: |
0.3-3.5mm |
|
Machine Net Weight(No table): |
185 KG |
|
The operating air pressure: |
0.6Mpa ~0.8Mpa. |
|
Voltage: |
220V or 110V |
Features:
1. The machine was designed to separate pre-scored PCB carefully , without bending and tension stress .
2. Even sensitive SMD - Components like ceramic capacitors, will not be damaged by the separating process , or thin board even to 0.3mm can be worked safely .
3. Separating process without vibrations
4. PCB separating control method is by pneumatic - driven and electromagnetic valve
5. PCB separating operation is that operator stamps the foot pedal to separate PCB
6. Highest components near the v groove of PCB can be up to 50mm
7. Gap for insertion of PCB can be easy to adjust
