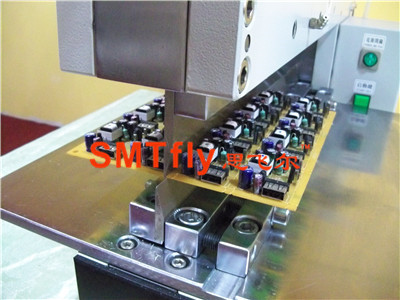

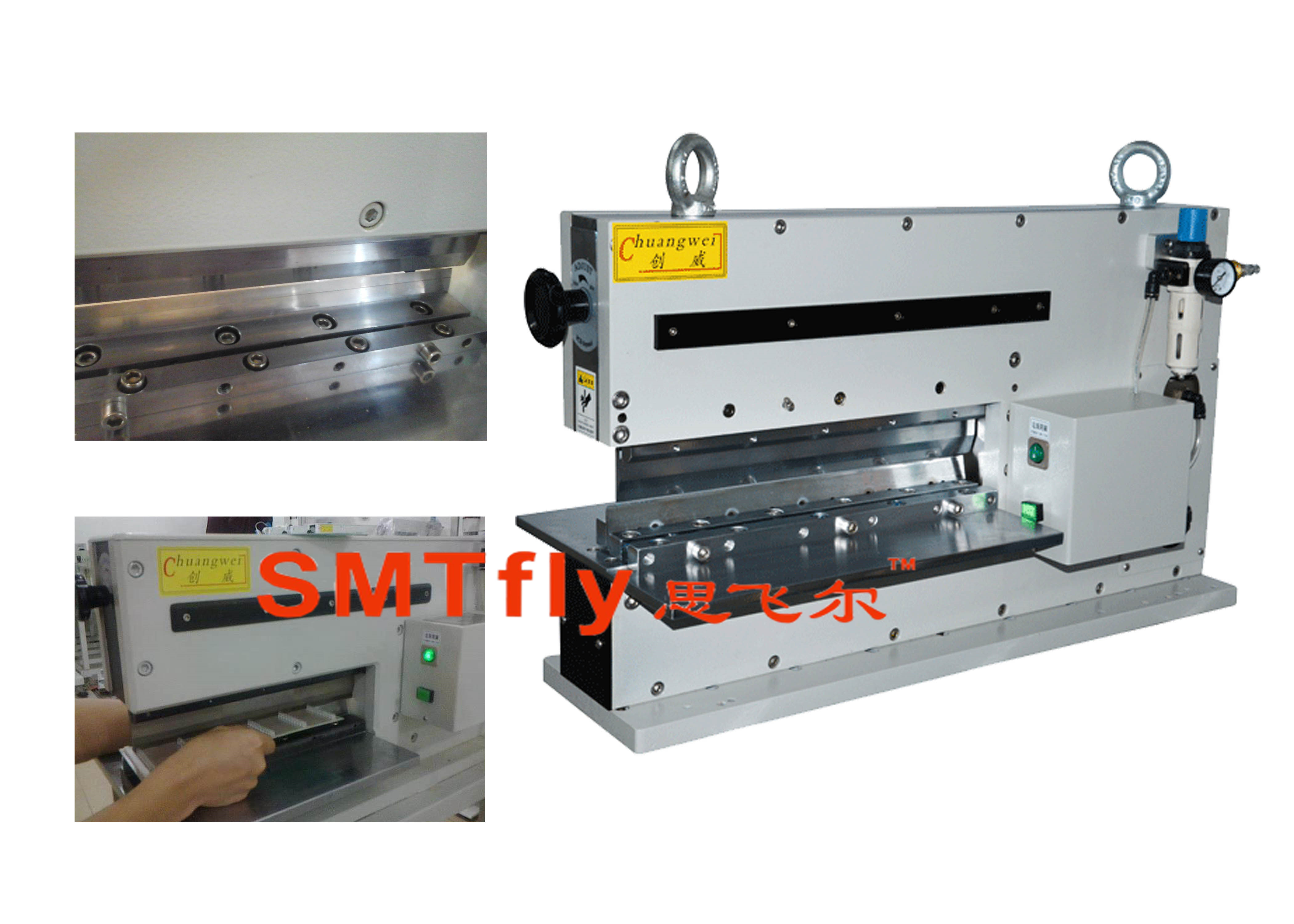

Fiberglass PCB Separator,SMTfly-400J

Product description: Fiberglass PCB Separator,SMTfly-400J
INQUIRY

Specification:

Model:	CWVC-400J
The Longest Minimize:	400mm
Size:	960×425×350mm
Minimize thickness:	0.6-3.5mm
Machine Weight:	180KG

Feature:

1.Separates boards up to 3.5mm thick
2.Shears boards safely with parts as close as 0.5mm to the
score line,including ceramic capacitors
3.Operator foolproof! Panels cannot be inserted into the
knives except on the score line
4.Pneumatically driven
5.Handles high components up to 70mm
6.Bow waves that can occur with round knives are avoided
7.Easy adjusting of distance between knives
8.Independent lab tests show less than 200 microstrains of

stress measuring compression and tension.
