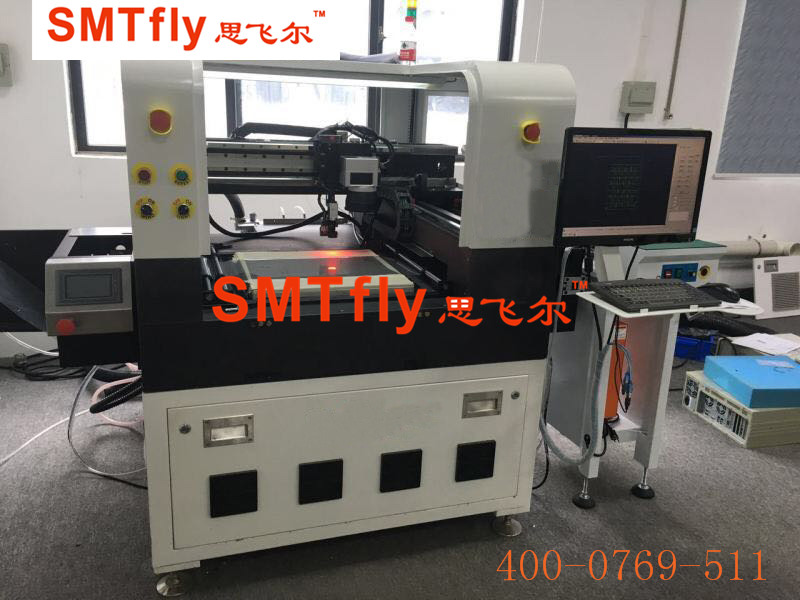

Laser PCB Depaneling Machine,SMTfly-5L

Laser PCB Depaneling Machine,SMTfly-5L

  • Product description: Laser PCB Depaneling Machine
  • INQUIRY

Laser PCB Depaneling Machine Features

1. Neat and smooth edge, no burr or overflow

2. More quick and easy, shorten the delivery time

3. High quality ,no distortion,surface clean& uniformity;

4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed

Laser PCB Depaneling Machine Parameter

Parameter








Technical parameters

Main body of laser 1480mm*1360mm*1412 mm
Weight of machine 1500Kg
Power AC220 V
Laser 355 nm
Laser


Optowave 10W(US)

Material ≤1.2 mm
Precisio ±20 μm
Platfor ±2 μm
Platform ±2 μm
Working area 600*450 mm
Maximum 3 KW
Vibrating CTI(US)
Power AC220 V
Diameter 20±5 μm
Ambient 20±2 ℃
Ambient <60 %
The Machine Marble

Laser PCB Depaneling Machine Advantages

1.High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

2.Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

3.Reduce energy consumption, Cost savings.

4.Cost-effective, fast cutting speed, stable performance

Laser PCB Depaneling Machine Application

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
